Planned Logical Topology

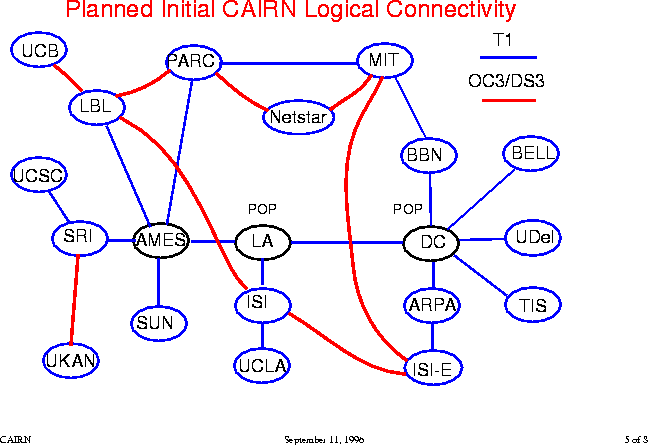

This shows the planned logical connectivity in CAIRN, considering the T1 circuits as well as the Permanent Virtual Paths (PVPs) that will be initially configured through the high-speed links.

The T1 links are shown in blue, and the high-speed PVPs in red.
